Bertram Spec Sheet

jadair · Post by **jadair** » Fri Dec 15, 2006 3:53 am

Found this in my paper work Spec sheet from 1987. [IMG]http://i22.photobucket.com/albums/b336/ ... cSheet.jpg[/IMG]

Post by **dougl33** » Fri Dec 15, 2006 4:08 am

Good stuff. Thanks John. Regards, Doug L. 1986 33 Bertram FBC Queen Elizabeth Marblehead, MA [img]http://www.bertram33.com/photogallery/p ... sabeth.jpg[/img]

Capt. Ed · Post by **Capt. Ed** » Fri Dec 15, 2006 4:43 am

Looking at the shaft and prop spec's for the 33FBC gas and diesel appears reversed.

jadairiii · Post by **jadairiii** » Fri Dec 15, 2006 5:37 am

I noticed the same thing. John BTW, I seem to have 2 user names, how do I delete that first one?

Post by **dougl33** » Fri Dec 15, 2006 5:41 am

Nope. Its right on. Diesels always had 1.375 and the gas shifted to 1.5 in 1987. Its because they changed the trans ratio in order to swing a larger prop (23x26 rather than 21x20). The thing that jumps out at me is the fuel burn for the 37's. The 375 Cats burn 33 gph at cruise and the 450 DD's burn 46 gph. It reafirms my decesion to re-power rather than to buy a 37 or 38. I don't think I could afford to run a 37 or 38 given these fuel burn numbers. Regards, Doug L. 1986 33 Bertram FBC Queen Elizabeth Marblehead, MA [img]http://www.bertram33.com/photogallery/p ... sabeth.jpg[/img]

Capt. Ed · Post by **Capt. Ed** » Fri Dec 15, 2006 6:10 am

Do you know what material was used on the 1 3/8 shafts?

Post by **dougl33** » Fri Dec 15, 2006 6:32 am

I believe they used aquamet. Regards, Doug L. 1986 33 Bertram FBC Queen Elizabeth Marblehead, MA [img]http://www.bertram33.com/photogallery/p ... sabeth.jpg[/img]

Capt. Ed · Post by **Capt. Ed** » Fri Dec 15, 2006 11:41 am

Which aquamet? 19,22?

Post by **dougl33** » Fri Dec 15, 2006 4:58 pm

22? I'm no really sure. Perhaps a call should be made to Danny at Hightide. Regards, Doug L. 1986 33 Bertram FBC Queen Elizabeth Marblehead, MA [img]http://www.bertram33.com/photogallery/p ... sabeth.jpg[/img]

photo finish · Post by **photo finish** » Sat Dec 16, 2006 4:22 am

my specs say 22

Capt. Ed · Post by **Capt. Ed** » Sat Dec 16, 2006 5:53 am

22 makes sense, and I belive I recall reading that on the forum sometime back.

captgene · Post by **captgene** » Mon Dec 18, 2006 4:22 am

Those specs are the same on my 1989 spec sheet. I have the 2:57 gear and 23 x 26 3 blades. Which may turn up 4400 on a empty boat. I cut them to 23x24. Shafts are Aquamet 22 1.5. My wgt and fuel cap. is different. And the boat only sees 23 mph going downhill. I bet I burn 37 gal / hr theough. Gene Dugan Boca Raton, Fl. "Nauti Marie" 1989 33 FBC

mistersea · Post by **mistersea** » Sat Jan 05, 2008 6:27 am

This looks like it was an interesting thread. I do not see a copy of the referenced spec sheet. Is it still around? Robert

Post by **dougl33** » Sat Jan 05, 2008 1:52 pm

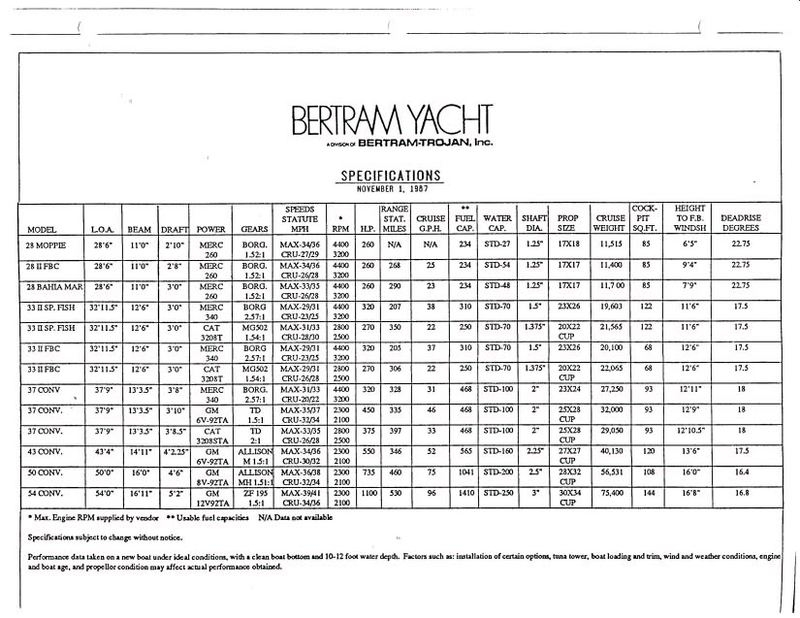

[img]http://www.bertram33.com/images/uploads ... et1987.JPG[/img] Regards, Doug L. 1986 33 Bertram FBC Queen Elizabeth Marblehead, MA [img]http://www.bertram33.com/photogallery/p ... sabeth.jpg[/img]

richcatch22 · Post by **richcatch22** » Sun Jan 06, 2008 7:46 am

I notice that the fuel capacity is stated as "usable" at 310/250 gals. I assumed that to to be tank capacity and usable to be some thing like 90% of that. I usually plan a trip for no more than 225 max all things considered. Has anyone acutally used 310/250 as usable? Capt Rich Catch 22 1989 33 FBC
